KFT-20 · Chain Series

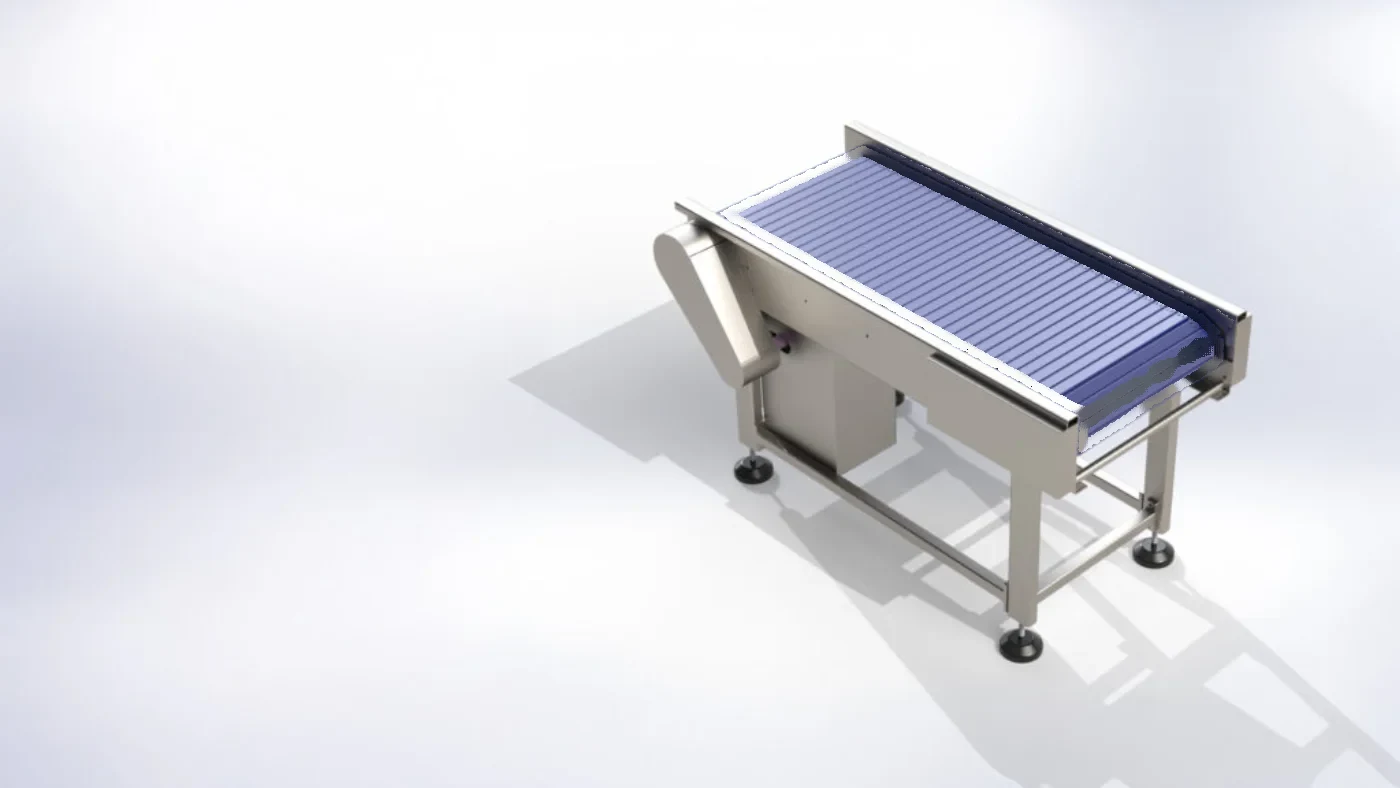

Chain Conveyor
Chain-driven transport for heavy and bulk loads.
Product rides directly on a driven chain, or on fixtures attached to it. For heavy and bulky loads where a belt would deflect.
- Family Chain & Slat
- Series Chain Series
- Type code KFT-20
- Configuration Chain deck
- Construction SS 304 / MS
Features
What is built into it
-
Heavy-duty construction
-
Durable chain drive
-
Customizable configuration
-
Versatile applications
-
Handles large, heavy items
-
Stable movement
-
Reduced maintenance
-
Consistent operation
Specification
Standard ranges
An envelope, not a fixed configuration — every dimension is set on the GA drawing.
Chain Conveyor — GA drawing, plan and elevation, key dimensions called out SVG or PDF · 1-colour line art · dimensioned Drawing pending
- Length
- 1.5-10 m / Customized
- Width
- 300-600 mm
- Height
- 700-900 mm / Customized
- MOC
- SS 304 / MS
- Surface Finish
- SS Matt / Bead Blast or MS Painting & Powder Coating
- Speed
- 5-15 m/min
- Motor Position
- Right / Left
- Voltage
- 220 V / 415 V
- Drive Type
- Direct / Chain
- Direction
- Single
- Resting
- Levelling Pads / Wheel
Applications
Where it runs
- Transferring heavy components between workstations
- Boxes handling in warehouses
- Capping bottles
- Handling food grains
- Moving blister packs
- Transporting tablets/capsules
- Airports
- Assembly Lines
- Automobile
- Cosmetics
- E-commerce
- Electronics
- Food and Beverages
- Manufacturing
- Packaging
- Pharma
- Warehousing
- Waste Management
