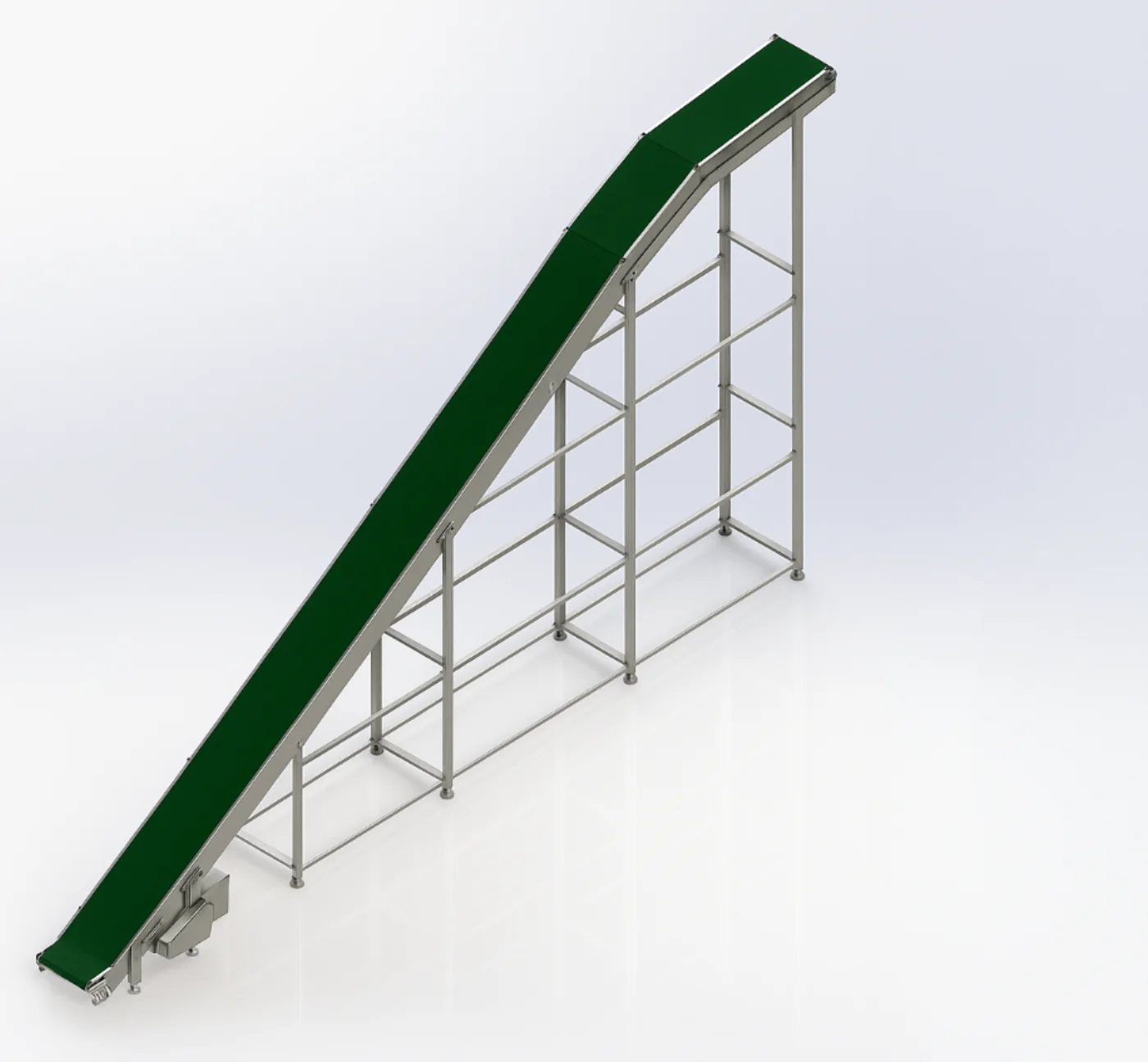

Inclined Flat Belt
Adjustable-angle belt to move product between heights.
A flat belt on an adjustable angle, moving product between two working heights. Cleats and side guards stop it sliding back or off.
- Family Flat Belt
- Series Belt Series
- Type code KFT-11
- Configuration Inclined transfer
- Construction SS 304 / MS / Aluminium
What is built into it
-
Enables material movement from lower to higher elevations
-
Prevents spillage and product fall-off during transport
-
Optimized for tight spaces requiring vertical lifting over short distances
-
Smooth transfer capability at steep angles
-
Effective utilization of vertical workspace
-
Reduces manual labor and ergonomic risks
-
Increases throughput and productivity
-
Adaptable incline angles and belt types (cleated, rough-top, modular plastic)
-
Bi-directional operation with configurable motor position (right, left, or center)
Standard ranges
An envelope, not a fixed configuration — every dimension is set on the GA drawing.
- Length
- Customized
- Width
- 65-1200 mm
- Height
- Customized
- Inclination Angles
- 7.5 / 15 / 30 / 45 degrees / Customized
- Materials of Construction
- SS 304 / MS / Aluminium
- Surface Finish
- Stainless steel - Matt or Bead Blast; Mild steel - Painting or Powder Coating
- Belt Options
- PVC, PU, Cleated, Rough-Top, Modular
- Speed Range
- 5-35 m/min
- Motor Position
- Right, Left, or Center
- Power Supply
- Single Phase or 3 Phase, 50 Hz
- Voltage
- 220V or 415V
- Drive Type
- Direct, Chain, or Belt Drive
- Direction
- Bi-directional
- Mounting
- Levelling pads or wheels
Where it runs
- Airports
- Assembly Lines
- Automobile
- Cosmetics
- E-commerce
- Electronics
- Food and Beverages
- Manufacturing
- Packaging
- Pharmaceuticals
- Warehousing
- Waste Management
