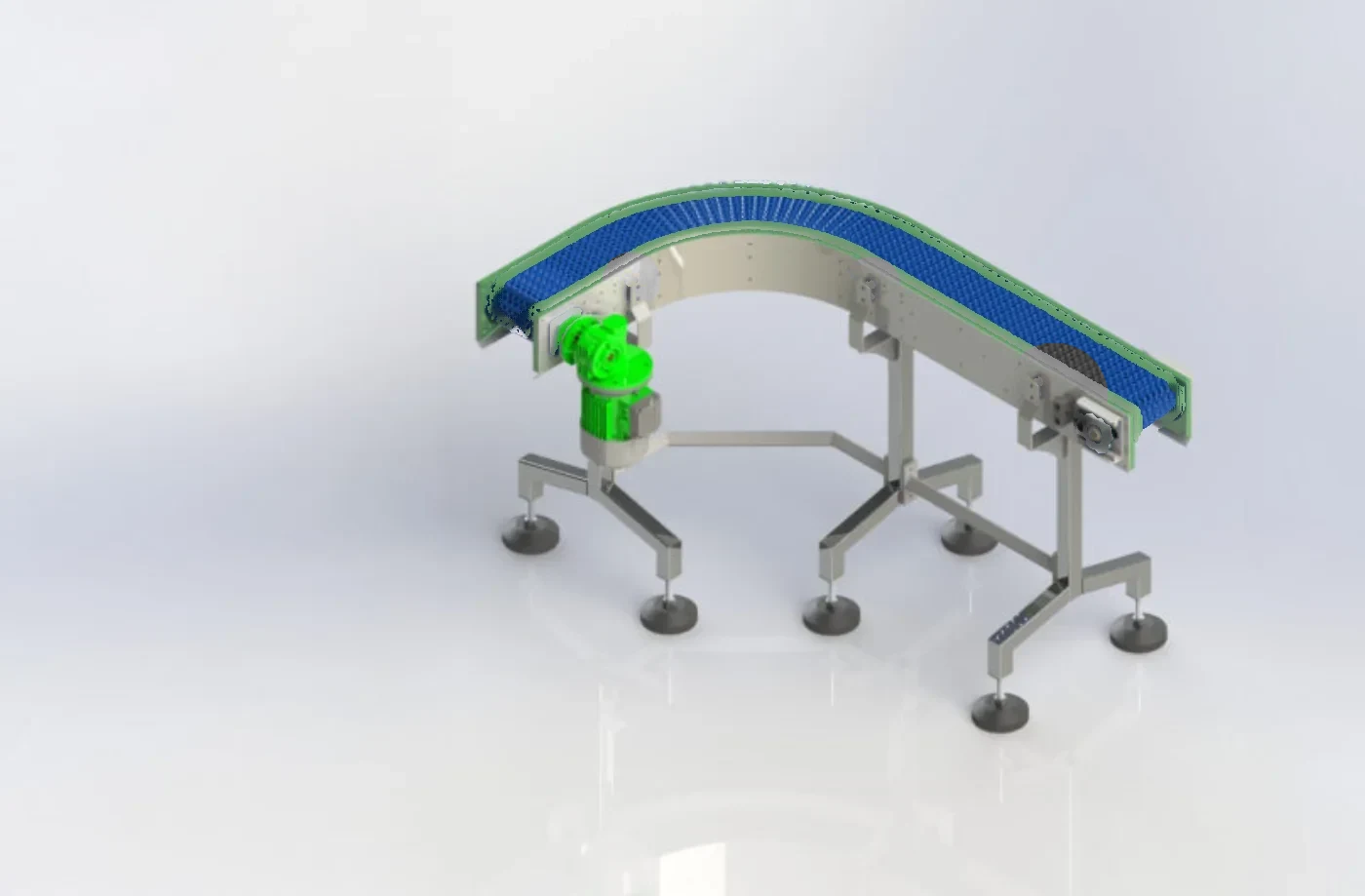

Radius Modular
Curved belt that holds orientation around 45–180° bends.
A 45°, 90° or 180° curve on a radius-capable belt that collapses on the inside edge, so product holds its orientation through the bend.
- Family Modular Belt
- Series FlexiTrack Series
- Type code KFT-08
- Configuration Radius / directional change
- Construction SS 304, MS, or Aluminium
What is built into it
-
Modular, interlocking belt design with easy-to-replace sections
-
Configurable for curves, inclines, and declines
-
Auto belt alignment via sprocket engagement
-
Continuous movement through turns (45°, 90°, 180°)
-
Long service life and durable construction
-
Hygienic and easy to clean
-
Minimal slippage and alignment issues
-
Lightweight structure
-
Multiple belt options: flat top, perforated, cleated, friction top, radius/curved
-
Bi-directional operation with flexible motor positioning (right, left, or center)
Standard ranges
An envelope, not a fixed configuration — every dimension is set on the GA drawing.
- Length
- 0.5-10 meters (customizable)
- Width
- 65-1200 mm
- Height
- 700-900 mm (customizable)
- Material of Construction
- SS 304, MS, or Aluminium
- Surface Finish
- SS Matt Finish/Bead Blast; MS Painting & Powder Coating
- Belt Options
- Flat top, perforated, cleated, friction top, radius/curved
- Speed
- 5-30 m/min
- Motor Position
- Right, Left, or Center
- Voltage
- 220 V or 415 V
- Drive Type
- Direct, Chain, or Belt Drive
- Direction
- Bi-Directional
- Support
- Levelling Pads or Wheels
Where it runs
- Moving medicines, bottles, or blister packs through cleanroom conditions
- Curved transport of cartons, pouches, or trays between machines
- Handling boxes, food grains, vaccines, tablets, capsules, and personal care items
- Airports
- Assembly Lines
- Automobile
- Cosmetics
- E-commerce
- Electronics
- Food and Beverages
- Manufacturing
- Packaging
- Pharma
- Warehousing
- Waste Management
