KFT-18 · Roller Series

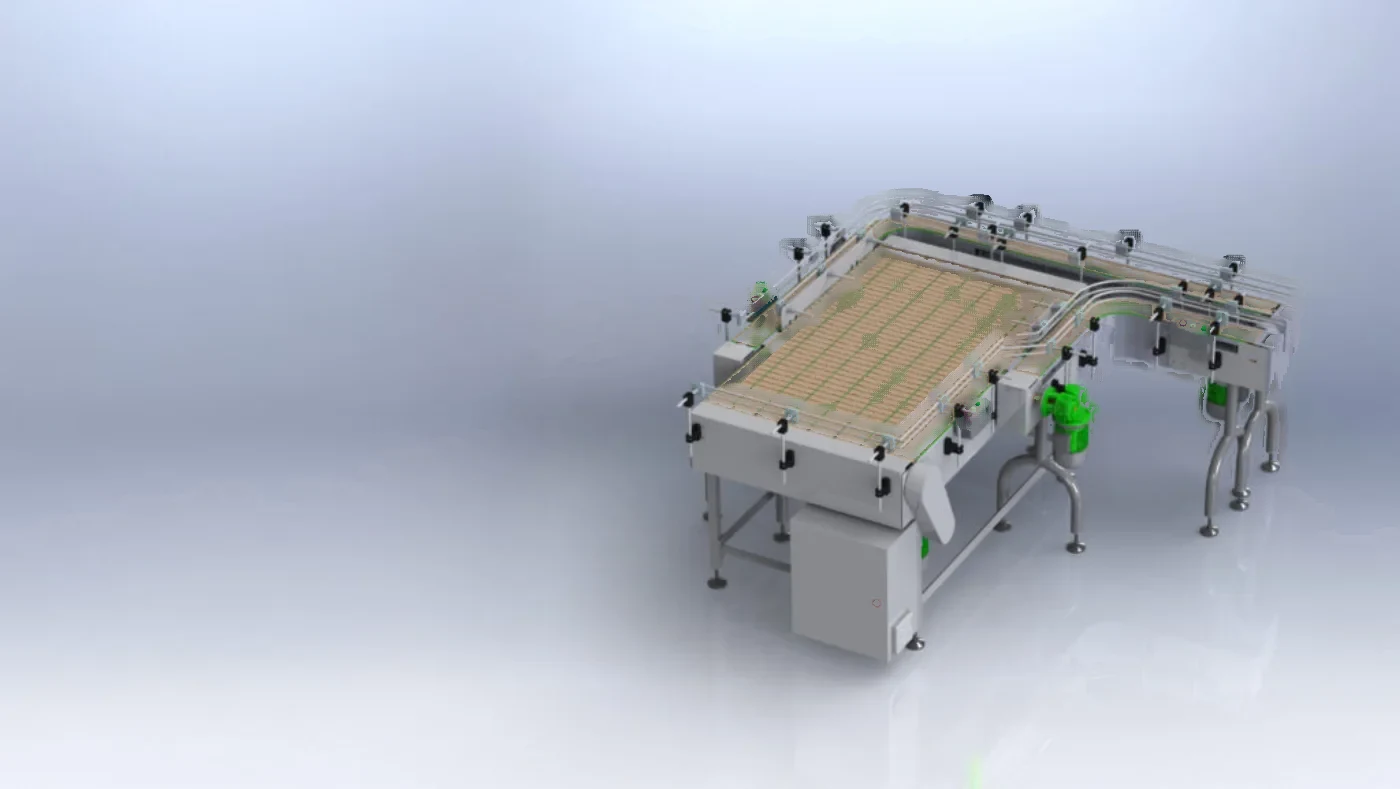

Accumulation
Zero-pressure buffering to prevent line bottlenecks.
Zoned rollers that queue product without pressure: each zone holds until the one ahead clears, so packs never push against each other.
- Family Roller
- Series Roller Series
- Type code KFT-18
- Configuration Roller deck
- Construction SS 304 / 316
Features
What is built into it
-
Increased storage capacity for queuing products along the line
-
Production line balancing with Variable Frequency Drive (VFD)
-
Sensor technology integration for controlled accumulation and release
-
Compact, safe, and reliable design
-
Compatible with diverters and merge units
-
Bi-directional operation capability
Specification
Standard ranges
An envelope, not a fixed configuration — every dimension is set on the GA drawing.
Accumulation — GA drawing, plan and elevation, key dimensions called out SVG or PDF · 1-colour line art · dimensioned Drawing pending
- Length
- 750-6000 mm (customizable)
- Width
- 300-1200 mm
- Height
- 700-900 mm
- MOC
- SS 304 / 316
- Speed
- 0-15 m/min
- Voltage
- 220 V / 415 V
- Drive Type
- Direct / Chain / Belt Drive
- Belt Type
- Modular / Slat Chain
- Motor Position
- Right / Left
- Surface Finish
- Matt Finish / Bead Blast
- Mounting
- Levelling Pads / Wheel
Applications
Where it runs
- Warehouse box handling
- Bottle capping
- Food grain transport
- Personal care items
- Sheet metal parts
- Vaccine bottles
- Blister packs
- Tablets/capsules
- Biscuits and trays
- Airports
- Assembly lines
- Automotive
- Cosmetics
- E-commerce
- Electronics
- Food & Beverages
- Manufacturing
- Packaging
- Pharmaceuticals
- Warehousing
- Waste management
