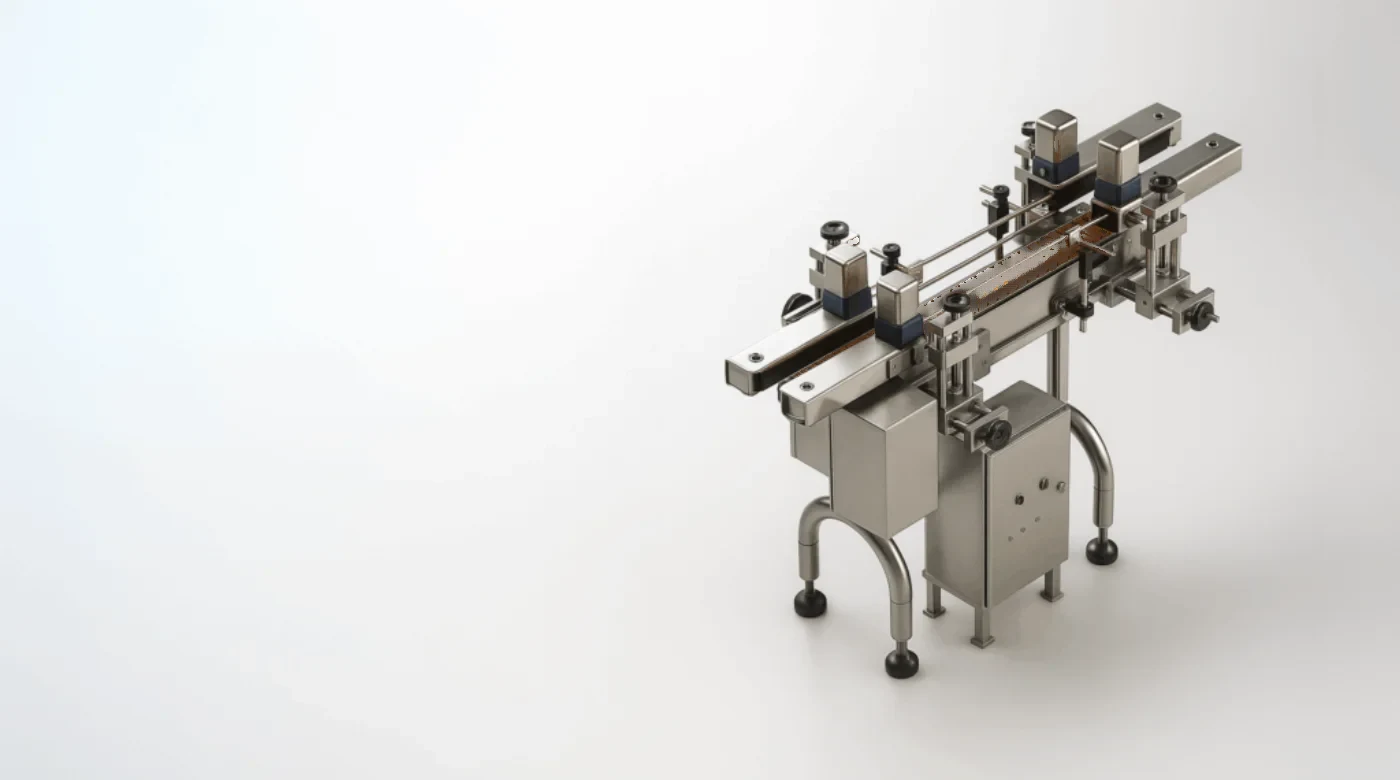

Massage Conveyor
Settles and orients product with a gentle massage action.
Upper and lower belts sandwich the product, settling and orienting it before a slicer, portioner or packing machine.
- Family Flat Belt
- Series Belt Series
- Type code KFT-14
- Configuration Straight belt run
- Construction SS 304 / 316
What is built into it
-
Height-adjustable conveyor bed
-
Handles multiple packaging formats
-
Adjustable side guides
-
Soft rubber or PU rollers gently press both sides of the product to eliminate air gaps
-
Customizable for varied applications
-
Improves product quality and increases packaging speed
-
Easy to clean, sanitize, and maintain with easy access
-
Reduces manual intervention for settling or repositioning filled products
-
Easily integrates with filling, capping, labeling, or inspection systems
-
Bi-directional operation
Standard ranges
An envelope, not a fixed configuration — every dimension is set on the GA drawing.
- Length
- 300-800 mm / Customized
- Width
- 35-200 mm
- Height
- 700-900 mm / Customized
- MOC
- SS 304 / 316
- Surface Finish
- SS Matt Finish / Bead Blast
- Belt Material
- PU Rubber
- Belt Width
- 35-200 mm (based on product size)
- Speed
- 5-40 m/min
- Motor Position
- Top
- Voltage
- 220 V / 415 V
- Drive Type
- Direct / Belt Drive
- Direction
- Bi-Directional
- Resting
- Levelling Pads / Wheel
Where it runs
- Stabilizing bottles, pouches, or cartons before labeling, capping, or coding
- Food and Beverages
- Pharma
- Packaging
- Electronics
- Cosmetics
- Manufacturing and Assembly Lines
- Automobile
- Warehousing and E-commerce
- Airports
- Waste Management
