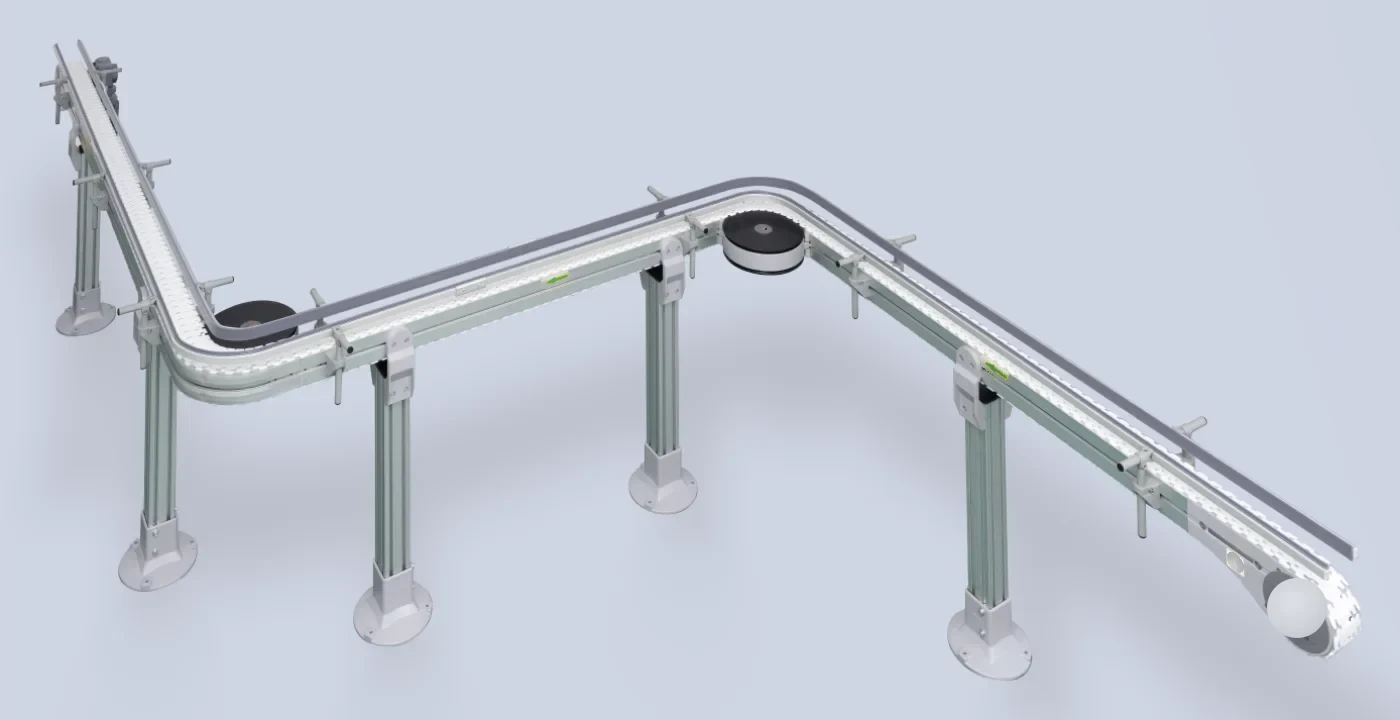

Z-Type Modular
Infeed, incline and discharge in one Z-profile lift.
Infeed, incline and discharge in one frame. The Z lifts product to a downstream machine's height without the floor a straight incline would need.
- Family Modular Belt
- Series FlexiTrack Series
- Type code KFT-05
- Configuration Inclined transfer
- Construction Stainless steel 304 or aluminum
What is built into it
-
Z-shaped layout (two horizontal runs joined by an inclined section) to elevate or lower products between levels
-
Space-optimizing design that minimizes required floor area
-
Modular plastic belt for reliable, flexible product handling
-
Hygienic design approach suited to food and pharma environments
-
Low maintenance requirements and extended service life
-
Bi-directional operation capability
-
Highly customizable configuration (length, height, belt width, motor position, drive type)
-
Enhanced operational efficiency across a wide range of industries
Standard ranges
An envelope, not a fixed configuration — every dimension is set on the GA drawing.
- Length
- 1-50 meters (customizable)
- Belt width
- 65 mm, 85 mm, or 105 mm
- Height
- 700-900 mm (customizable)
- Material of construction
- Stainless steel 304 or aluminum
- Belt type
- Modular plastic belt
- Speed range
- 5-40 m/min (variable or fixed)
- Motor position
- Right or left orientation
- Power supply
- Single-phase or three-phase, 50 Hz
- Voltage
- 220V or 415V
- Drive type
- Direct, chain, or belt drive
- Direction
- Bi-directional
- Support
- Foot rest or tripod
Where it runs
- Transferring products between different height levels
- Feeding filling, labeling, and sealing machines
- Handling bottles, pouches, containers, components, and cartons
- Automated assembly and sorting systems
- Food and beverages
- Pharmaceuticals
- Cosmetics
- Automotive
- Electronics
- Manufacturing and packaging
- Warehousing and e-commerce
- Airports
