KFT-22 · Lift Series

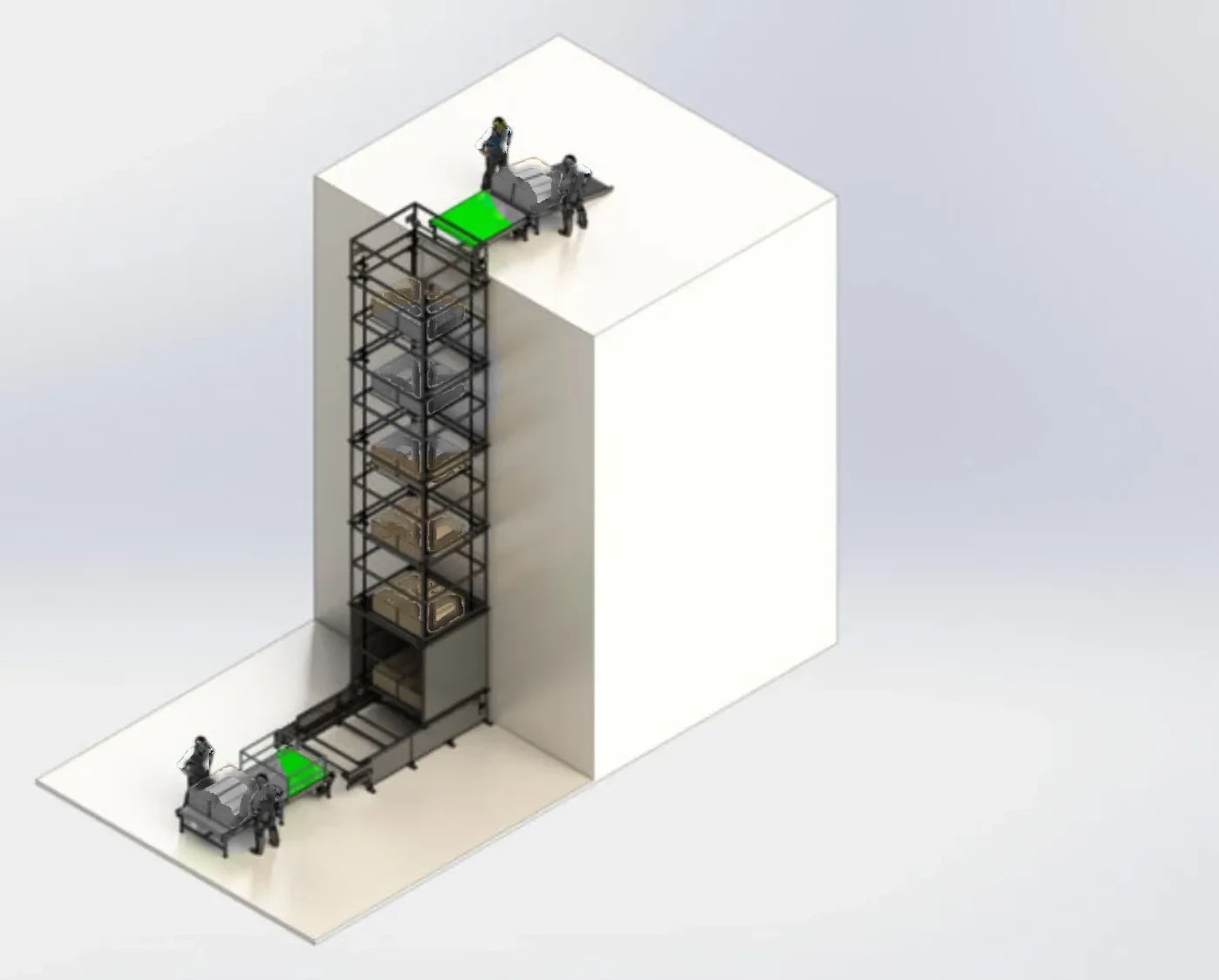

Vertical Lifting
Continuous vertical transfer between floor levels.
Continuous vertical transfer between floors, taking product up or down without an operator handling it at either end.
- Family Elevating & Vertical
- Series Lift Series
- Type code KFT-22
- Configuration Vertical lift
- Construction SS 304 / MS
Features
What is built into it
-
Precise vertical (bi-directional) transport between elevation levels
-
Touch-screen controls for easy operation
-
Sensor technology for detection and monitoring
-
Quality inspection and monitoring integration
-
Alarm notifications for fault and status alerts
-
Enhanced safety features
-
Consistency and accuracy in material handling
-
Increased line/labeling speed and improved appearance and traceability
-
Labour savings by reducing manual handling
Specification
Standard ranges
An envelope, not a fixed configuration — every dimension is set on the GA drawing.
Vertical Lifting — GA drawing, plan and elevation, key dimensions called out SVG or PDF · 1-colour line art · dimensioned Drawing pending
- Height
- 3-10 m (Customizable)
- Width
- 300-1000 mm
- MOC
- SS 304 / MS
- Surface Finish
- SS Matt Finish / Bead Blast or MS Painting & Powder Coating
- Speed
- 3-10 m/min
- Voltage
- 220 V / 415 V
- Motor Position
- Right / Left
- Drive Type
- Direct / Chain / Belt
- Direction
- Bi-Directional
- Resting
- Levelling Pads / Wheel
Applications
Where it runs
- Food products (loose, packaged, or bulk)
- Capsules, powders, or packaged medicines
- Boxes, grains, bottles, blister packs, tablets, and trays
- Food and Beverages
- Pharma
- Cosmetics
- Packaging
- E-commerce
- Warehousing
- Electronics
- Automobile
- Assembly Lines
- Manufacturing
- Airports
- Waste Management
