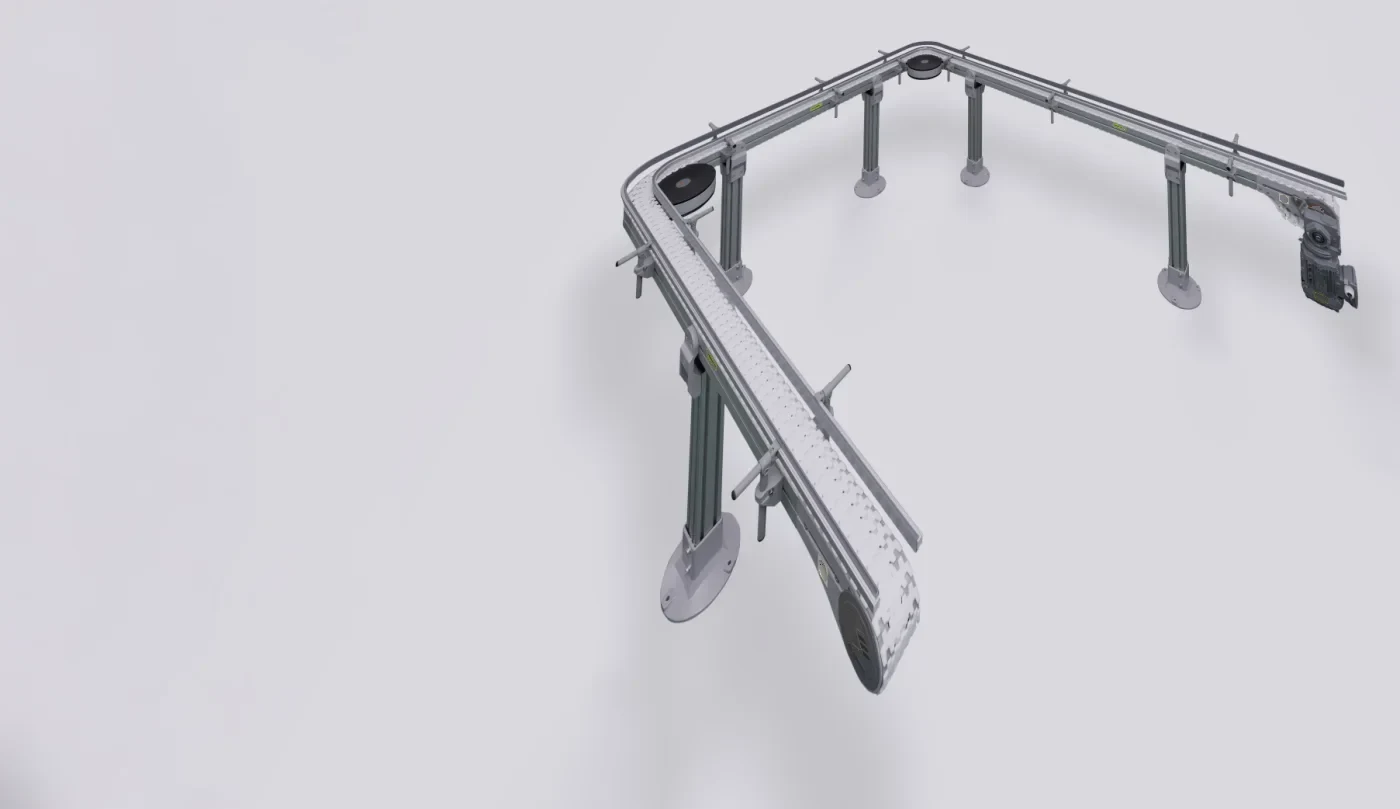

C-Type Modular
C-profile transfer combining vertical and horizontal runs.
A C profile that combines vertical and horizontal travel on one belt, holding product orientation through the change of plane.
- Family Modular Belt
- Series FlexiTrack Series
- Type code KFT-03
- Configuration Inclined transfer
- Construction SS 304 or Aluminum
What is built into it
-
Versatile application across multiple industries and production layouts
-
C-shaped belt design for smooth vertical and horizontal product movement
-
Enhanced efficiency for high-throughput product transfer
-
Low maintenance requirements
-
Long service life and durable construction
-
Hygienic design suitable for food, pharma, and cosmetics
-
Space optimization for compact production floors
-
Customizable options (length, height, drive type, motor position, supports)
-
Bi-directional operation
-
Gentle product handling with minimal damage
Standard ranges
An envelope, not a fixed configuration — every dimension is set on the GA drawing.
- Length
- 1-50 meters (customizable)
- Width
- 65 / 85 / 105 mm
- Height
- 700-900 mm (customizable)
- Material of construction
- SS 304 or Aluminum
- Belt type
- Modular belt
- Speed
- 5-40 m/min (variable or fixed)
- Power supply
- Single or 3-phase, 50 Hz
- Voltage
- 220V or 415V
- Drive type
- Direct, Chain, or Belt drive
- Direction
- Bi-directional
- Motor position
- Right or Left
- Support
- Foot Rest or Tripod
Where it runs
- Food & Beverage
- Pharmaceuticals
- Cosmetics
- Packaging
- Electronics
- Assembly Lines
- Airports
- Automobiles
- E-commerce
- Manufacturing
- Warehousing
- Waste Management
