KFT-24 · Inline QA Series

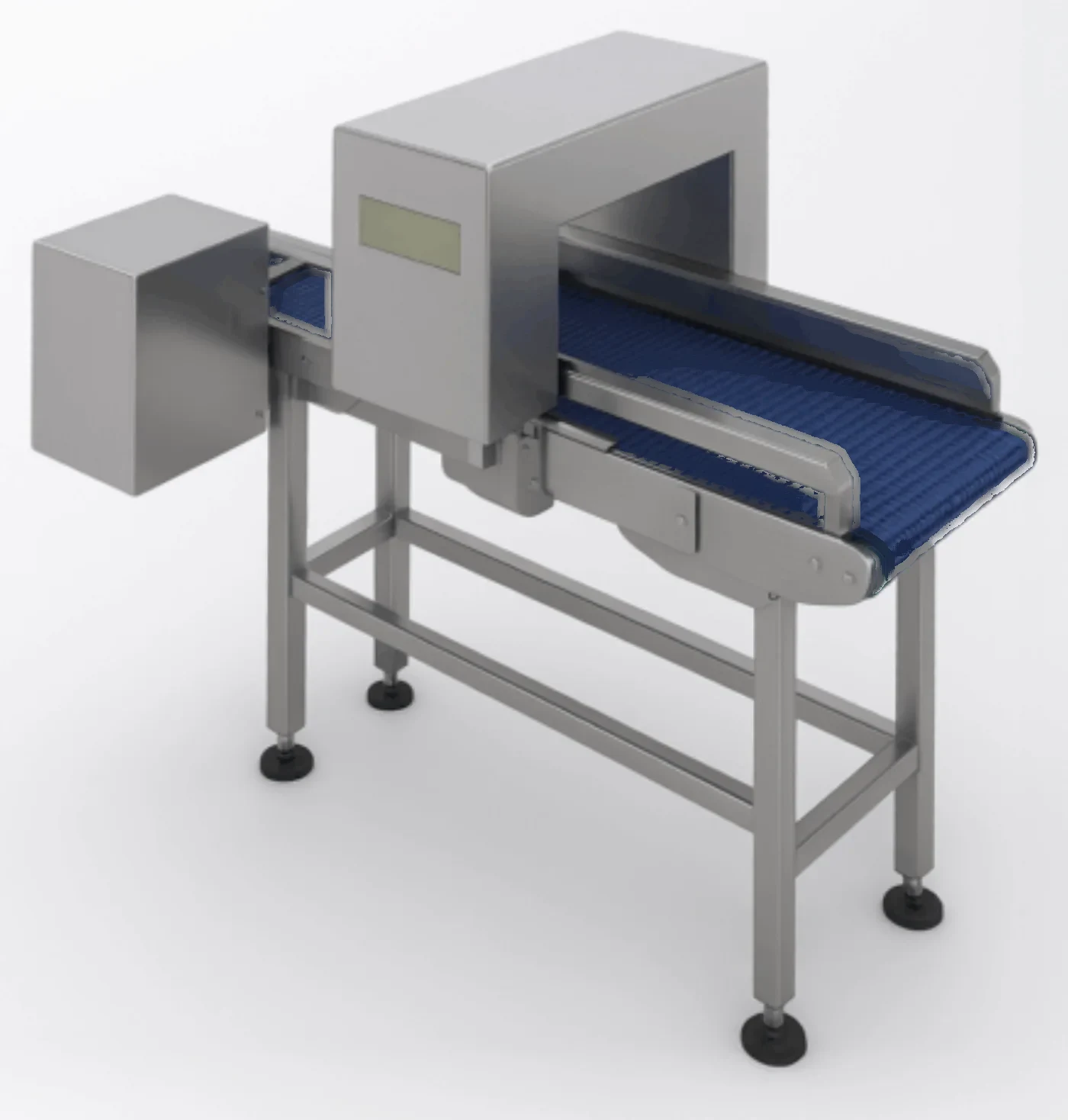

Metal Detector
Inline contaminant detection and rejection.
Detects ferrous, non-ferrous and stainless fragments in line and rejects the pack, without breaking the flow.
- Family Inspection & Process
- Series Inline QA Series
- Type code KFT-24
- Configuration Straight belt run
- Construction SS 304 / 316
Features
What is built into it
-
High sensitivity detection across ferrous, non-ferrous, and stainless steel contaminants
-
Automatic reject/ejection mechanism for detected metal
-
Advanced signal processing and compensation capabilities
-
User interface and control system with data logging and traceability
-
Food-grade construction (SS 304 / 316) for hygienic environments
-
Seamless integration into existing production lines
-
Customizable length and height to suit line requirements
-
PU belt for smooth, clean product handling
Specification
Standard ranges
An envelope, not a fixed configuration — every dimension is set on the GA drawing.
Metal Detector — GA drawing, plan and elevation, key dimensions called out SVG or PDF · 1-colour line art · dimensioned Drawing pending
- Length
- 800-2500 mm (customizable)
- Width
- 150-800 mm
- Height
- 700-900 mm (customizable)
- MOC
- SS 304 / 316
- Surface Finish
- Matt Finish / Bead Blast
- Belt Material
- PU
- Speed
- 5-45 m/min
- Detection - Ferrous
- 0.5-1.5 mm
- Detection - Non-Ferrous
- 1.0-1.6 mm
- Detection - Stainless Steel
- 1.5-2.5 mm
- Motor Position
- Right / Left
- Voltage
- 220 V / 415 V
- Drive Type
- Direct / Chain / Belt
- Direction
- Single
- Resting Support
- Levelling Pads / Wheel
Applications
Where it runs
- Food and Beverages
- Pharma
- Packaging
- Manufacturing
- Cosmetics
- Electronics
- Assembly Lines
- E-commerce
- Warehousing
- Waste Management
- Automobile
- Airports
