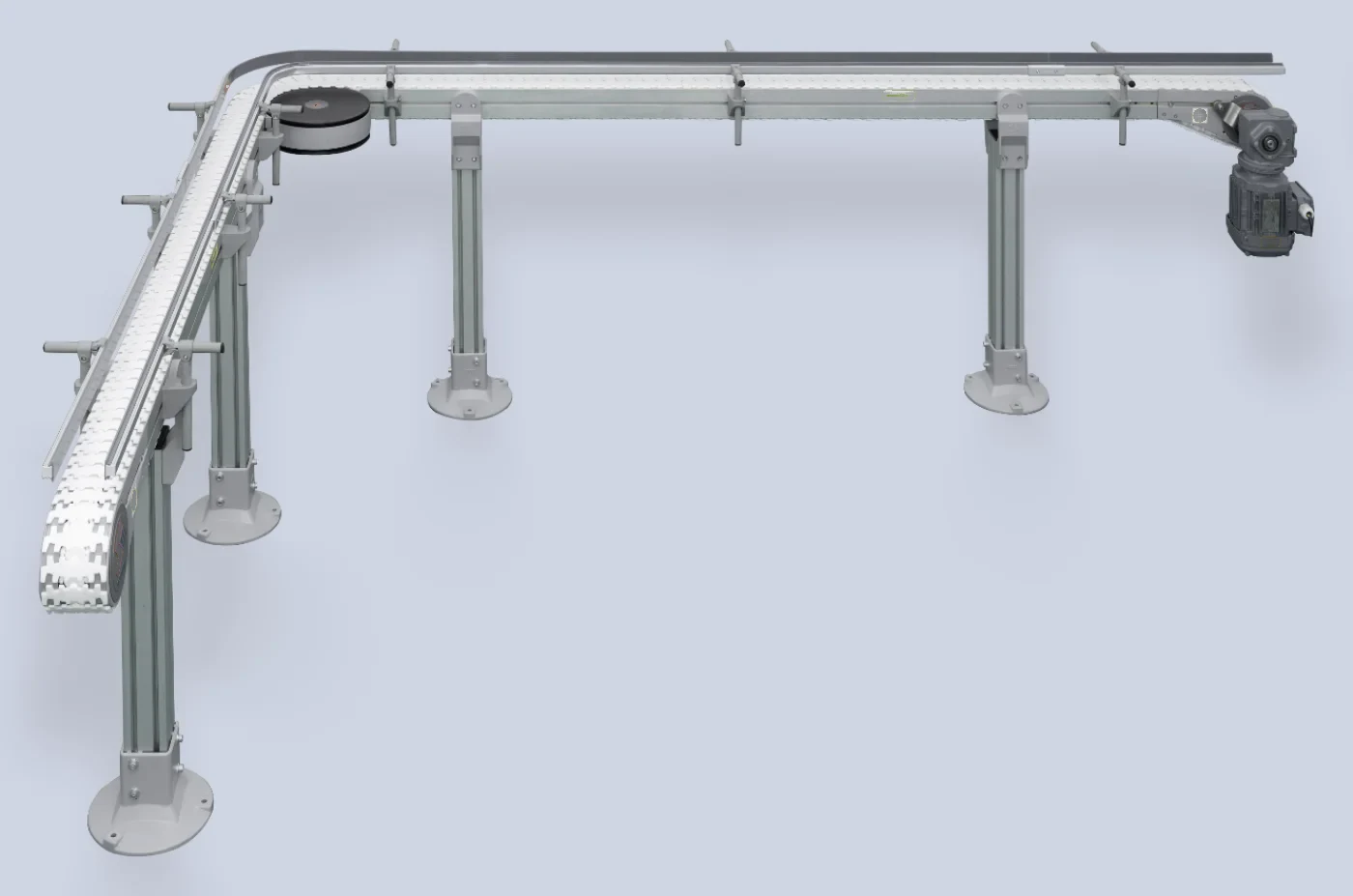

L-Type Modular
90° directional change on a single continuous line.
Two straight runs joined by a 90° bend, so a line changes direction without a transfer between machines.
- Family Modular Belt
- Series FlexiTrack Series
- Type code KFT-02
- Configuration Radius / directional change
- Construction Stainless Steel 304 or Aluminum
What is built into it
-
Transfers products smoothly around 90-degree bends for directional changes
-
Durable modular plastic belt construction
-
Corrosion-resistant frame (Stainless Steel 304 or Aluminum)
-
Low maintenance with simple assembly and quick belt replacement
-
High load-carrying capacity
-
Quiet, stable operation
-
Hygienic design standards suitable for food and pharma
-
Space-optimizing L-shaped layout
-
Extended service life
-
Bi-directional operation
-
Variable or fixed speed options
-
Highly customizable configuration (length, height, motor position, mounting)
Standard ranges
An envelope, not a fixed configuration — every dimension is set on the GA drawing.
- Length
- 1-50 meters (customizable)
- Width
- 65 / 85 / 105 mm
- Height
- 700-900 mm (customizable)
- Materials
- Stainless Steel 304 or Aluminum
- Surface Finish
- Hard Anodized, Matt, or Bead Blast
- Belt Type
- Modular Belt
- Speed
- 5-40 m/min (variable or fixed)
- Motor Position
- Right or Left
- Power Supply
- Single Phase or 3 Phase, 50 Hz
- Voltage
- 220V or 415V
- Drive Type
- Direct, Chain, or Belt Drive
- Direction
- Bi-Directional
- Mounting
- Foot Rest or Tripod
Where it runs
- Changing product flow direction around 90-degree bends without manual transfer
- Space-constrained layouts requiring directional changes
- Feeding materials to filling, labeling, or sealing machines
- Loading and unloading between conveyor lines
- Automated assembly lines and sorting systems
- Handling boxes, food grains, vaccine bottles, tablets/capsules, biscuits, blister packs, and trays
- Food and Beverages
- Pharmaceuticals
- Automotive
- Plastics
- Packaging
- Electronics
- Cosmetics
- Manufacturing
- E-commerce
- Warehousing
- Airports
- Waste Management
