KFT-12 · Belt Series

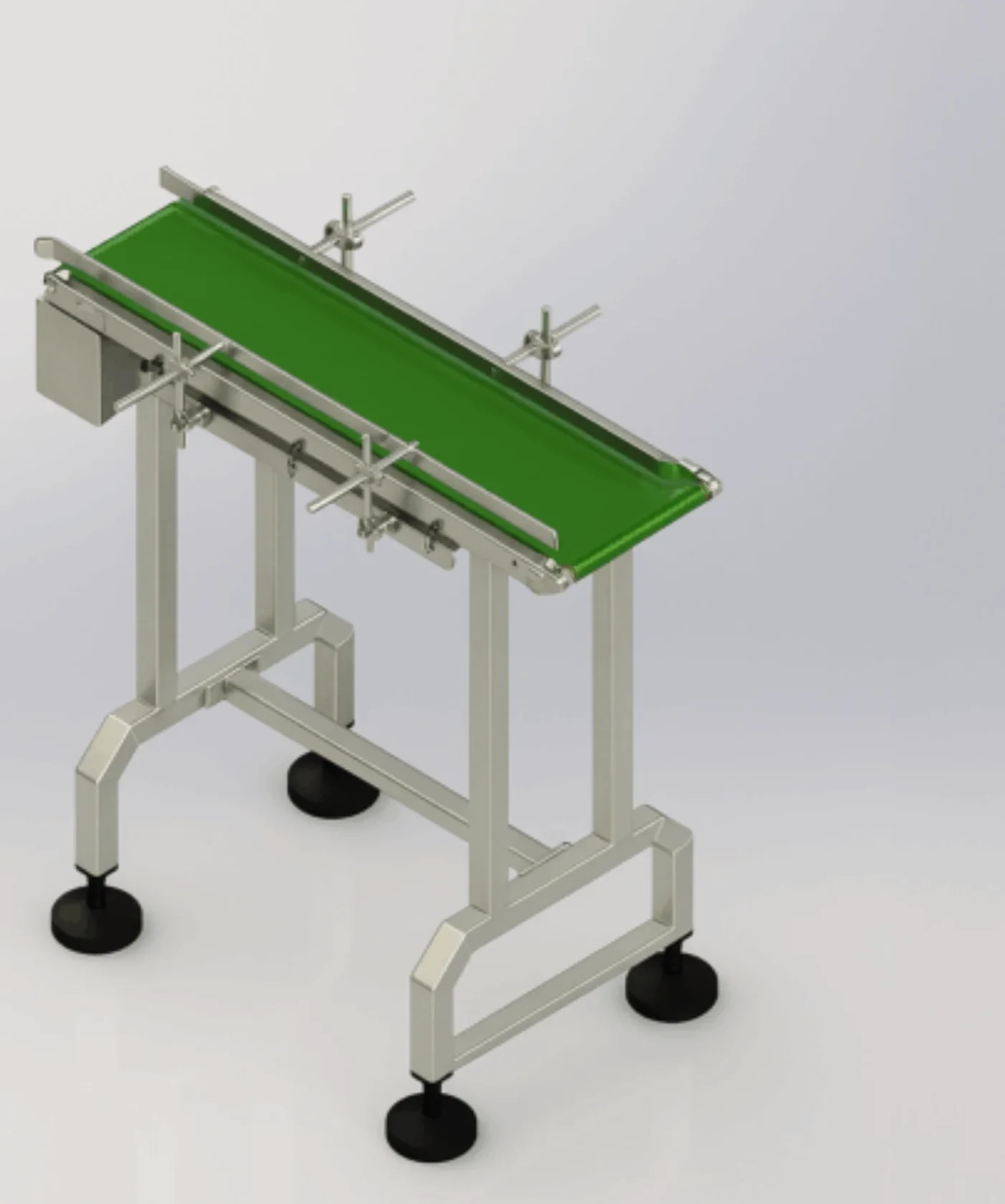

Knife-Edge Belt
Small-nose transfer for tiny and delicate products.
A minimal-diameter nose roller closes the gap between two lines, so small or flat product transfers without tipping or jamming.
- Family Flat Belt
- Series Belt Series
- Type code KFT-12
- Configuration Straight belt run
- Construction SS 304
Features
What is built into it
-
Minimal transfer gap design for seamless product handoff between conveyors
-
Adjustable speed via VFD (Variable Frequency Drive)
-
Adjustable side guides for accurate product alignment
-
Quick-release belt mechanism (optional)
-
Low noise operation
-
Compact design ideal for machine-to-machine transfer
-
Bi-directional operation
-
Food-grade PU belt with SS 304 construction
Specification
Standard ranges
An envelope, not a fixed configuration — every dimension is set on the GA drawing.
Knife-Edge Belt — GA drawing, plan and elevation, key dimensions called out SVG or PDF · 1-colour line art · dimensioned Drawing pending
- Length
- 300-800 mm (Customized available)
- Width
- 150-300 mm
- Height
- 700-900 mm (Customized available)
- Knife Edge Diameter
- 12-20 mm
- MOC (Material of Construction)
- SS 304
- Surface Finish
- SS Matt Finish / Bead Blast
- Belt Material
- PU
- Speed
- 5-50 m/min
- Motor Position
- Right / Left
- Voltage
- 220 V / 415 V
- Drive Type
- Direct / Chain / Belt Drive
- Direction
- Bi-Directional
Applications
Where it runs
- Pharmaceutical - vials, blister packs, tablets, capsules, vaccine containers
- Food & Beverage - food items and small packaged goods
- Cosmetics
- Electronics
- Packaging
- Warehousing & logistics
- Sheet metal / small parts transfer
