KFT-01 · FlexiTrack Series

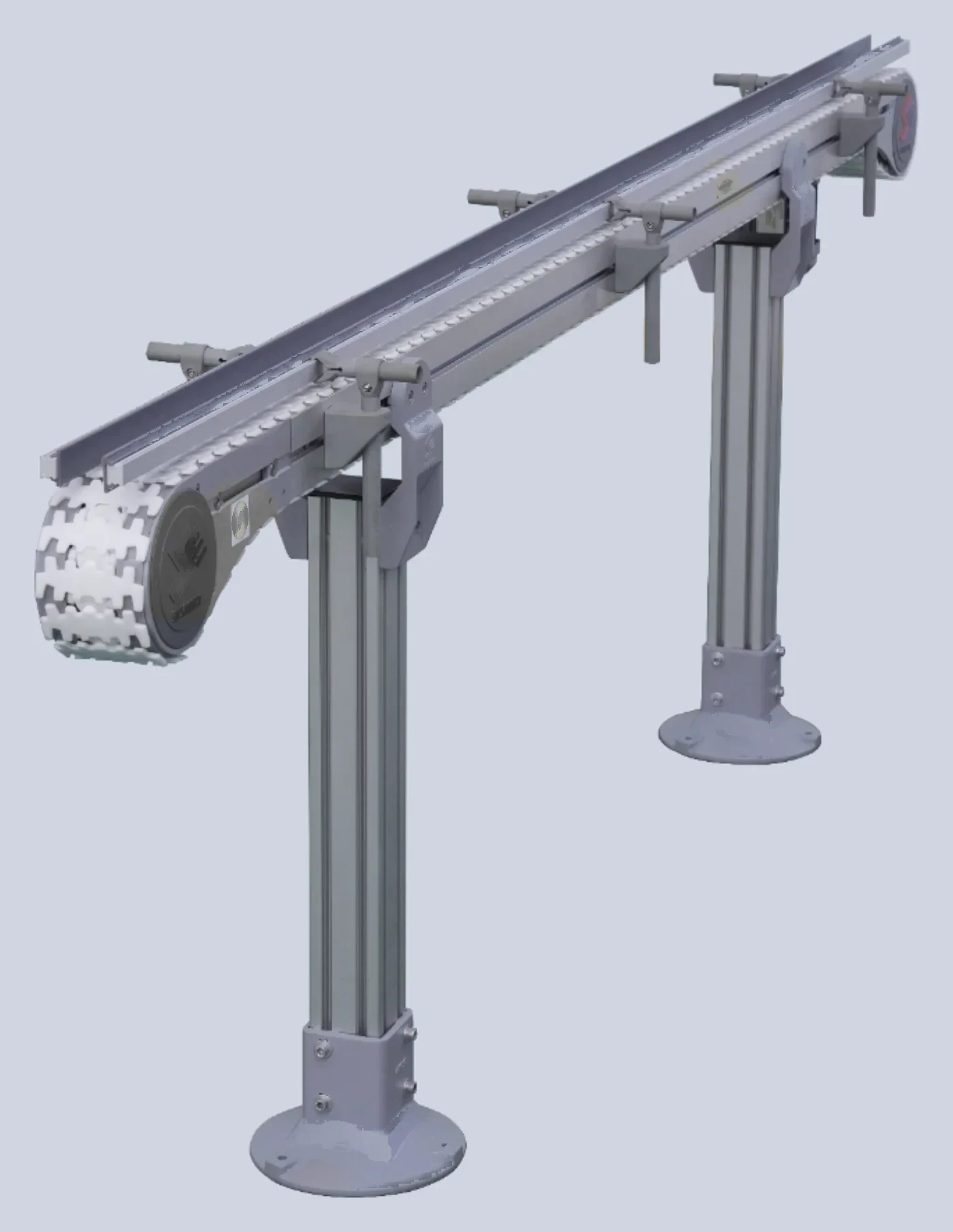

Straight Modular
Straight-line modular belt for smooth, hygienic transfer.
A straight run of interlocking modular plastic belt. Sections lift out individually, so a cleaning-down does not mean stripping the line.
- Family Modular Belt
- Series FlexiTrack Series
- Type code KFT-01
- Configuration Straight belt run
- Construction Stainless steel 304 or aluminum
Features
What is built into it
-
Modular plastic belt for smooth, efficient straight-line product transfer
-
Versatile across multiple industry sectors
-
Enhanced operational efficiency
-
Low maintenance requirements
-
Extended service lifespan
-
Hygienic design standards suited to high-sanitation environments
-
Space-efficient, compact configuration
-
Customizable specifications (length, height, width)
-
Bi-directional running capability
-
Variable or fixed speed operation
-
Motor mountable on right or left side
Specification
Standard ranges
An envelope, not a fixed configuration — every dimension is set on the GA drawing.
Straight Modular — GA drawing, plan and elevation, key dimensions called out SVG or PDF · 1-colour line art · dimensioned Drawing pending
- Type
- Straight configuration
- Length
- 1-50 meters (customizable)
- Width
- 65mm, 85mm, or 105mm
- Height
- 700-900mm (customizable)
- Material of construction
- Stainless steel 304 or aluminum
- Belt type
- Modular belt
- Speed range
- 5-40 m/min (variable or fixed)
- Motor position
- Right or left
- Power
- Single/three-phase, 50Hz; 220V or 415V
- Drive system
- Direct, chain, or belt drive
- Direction
- Bi-directional capability
Applications
Where it runs
- Food and beverage handling
- Pharmaceutical transport
- Cosmetics processing
- Packaging operations
- Electronics assembly
- Precision labeling, filling, and inspection tasks
- Manufacturing
- Automotive
- Food processing
- Warehousing
- E-commerce
- Airports
- Electronics sector
